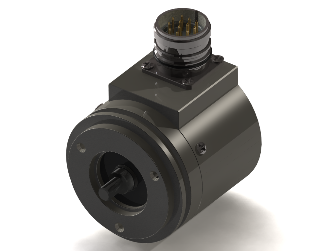

Series H
Stainless steel orTitanium
DATA SHEET


Before selecting "add to cart", please read the DATA SHEET and choose your "ordering code". The price depends on material and pulses selected. Shipping costs included.

Mechanics Data

Cover: Stainless steel or titanium
Body: Stainless steel or titanium
Solid shaft: Stainless steel or titanium
Bearings: 2, ballraces 2RS
Weight: Stainless steel 600gr.
Weight: Titanium 200 gr.
Protection: IP67( IP certificate on request)
Rpm: 6000 Max
Torque: 10Ncm
Inertia: 100gcm²
Shaft loading: Axial 150N - Radial 150N

Electronics Data

Power supply: from 5 to 24V depends on the electronics circuit
Current consumption: 40/80mA depends on the electronics circuit
Permissible load: 40mA
Frequency: to 600KHz depends on the electronics circuit
Protections: Against short circuit, reversal polarity
Operating Temp.: -20/+80°C
Pulses: up to 5000 / from 5001 to 10.000 /
from 10.001 to 36.000 / from 36.001 to 90.000
